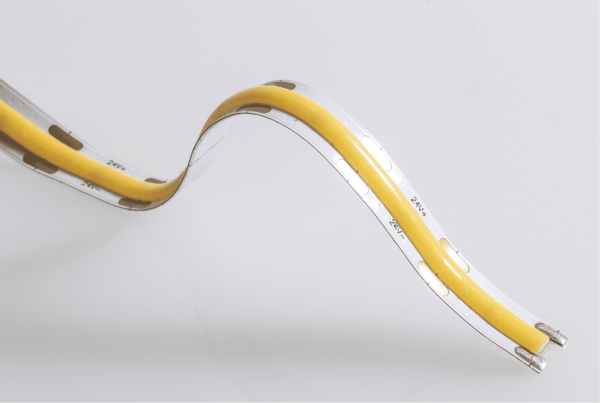

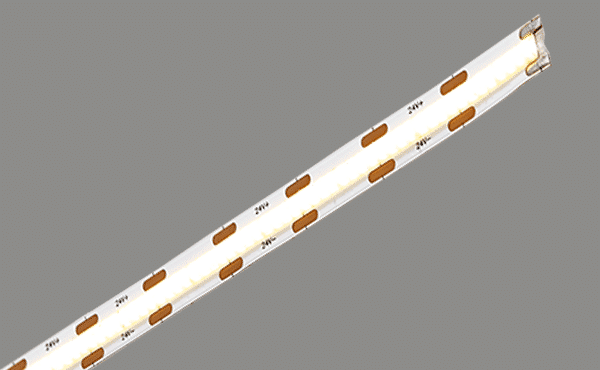

COB SWH 3.0

Chip-on-board technology enables a linear, nearly dot-free light
- Noticeably better than conventional LED strip
- Great for under cabinet lighting and other low profile applications (even projects where aluminum profiles can’t be used)
- Also enables a broader choice of dot-free aluminum profile/lens combo’s, including low profile
Six static white color temperature options
CRI90+
5 year warranty

Specifications

Binning	3-step MacAdams
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6500K
Environment	Dry
LED's/M	480
Max Run Length	26 FT
Mounting	With or without aluminum profile
Operating Temp	-4° to 140°F (-20° to 60°C)
Voltage	24
Wattage	3.0
Certifications	CE, cULus Listed, JA8 Compliant, Title 24
CRI	90+
Cut Length	0.66"
Dimming	0-10V, MLV, S3i
Lumens / Ft	303, 307, 323, 326, 341
Warranty	54,000 Hours
Wire Size	20 AWG
