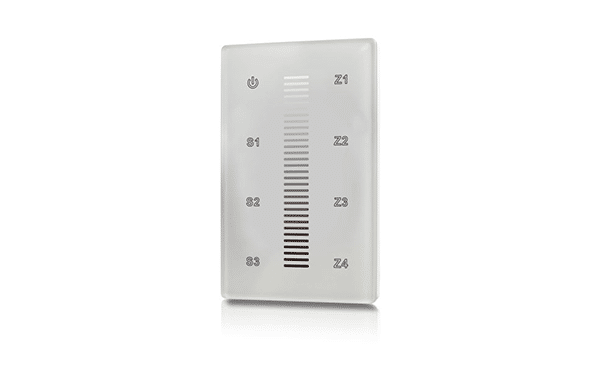

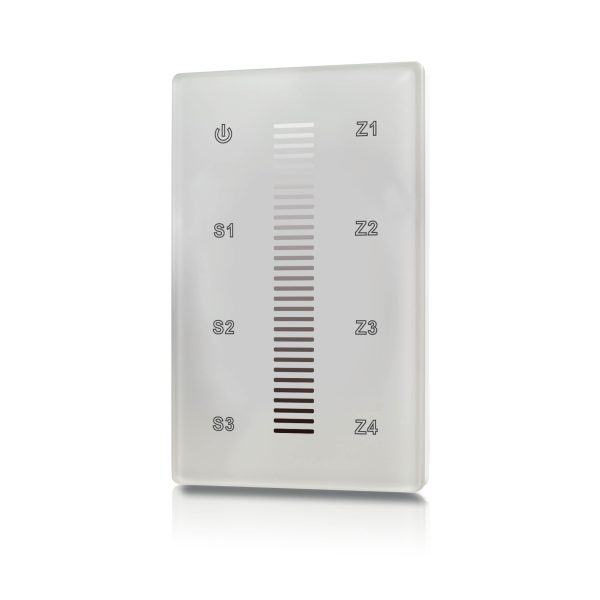

S3i Touch Panel Static Dim
• Controls single color
• Control 4 zones simultaneously and separately
• Touch sensitive glass surface
• Fits in standard US switch box
• Smart, simple, seamless integration
| Power Supply | 12 – 24 VDC, 100 – 240 VAC |
|---|---|
| Power Consumption | 200 mA, 15 mA |
| Operating Temp | 32° – 104° F |
| Wireless Range | 65 + (Low Voltage Power Supply Required) |
| Receiver Input Voltage | 12 – 36 VDC |
| Receiver Output Current | 4 x 5 A |
| Receiver Output Power | 240 – 720 W |
