NFDS DPX 3.65W

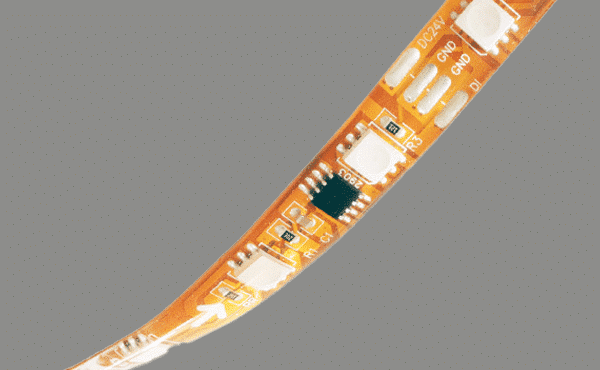

The Dynamic 24V Color-Changing Series offers a variety of options to create a specific branded look or unique, WOW lighting. This series is great for indoor (IP65) or outdoor, wet (IP68) applications which require a specific brand color or are looking for a way to elevate curb-appeal. This series is 80+ CRI/ 3-step MacAdam/ UL Certified/ and smooth, flicker-free dimming down to 0.1% The LED tape has 3M adhesive backing for direct install with clips or in one of our channels for a more finished look.

Perfect for integrated color changing that ties into a DMX control system or integrated through a traditional control system like Creston or Control4.

Specifications

Binning	3-step MacAdams
Environment	Damp, Wet
LED's/M	48
Mounting	3M Adhesive, Channels
Operating Temp	-15° to 140°F (-25° to 60°C)
Voltage	24
Wattage	3.65
Certifications	cULus Listed
Cut Length	4.93"
Dimming	SPI, UCS 2903
Lumens / Ft	83
Warranty	2 Years, 50,000 Hours
Color	DRGB
Max Run Length	16.4 FT
Wire Size	20AWG, 4-wire
Length	RL10MT, RL50MT, XX

Documents

Select which sections you would like to be merged into one PDF.

Other Downloads

Photometrics - NFDS RGB, GRBW, DRGB
