Description
The 90+ CRI Design Series Adjustable offers a wide range of whites to impact the places people live, work and play.
• K-temp range from 2100K – 5400K
• Adjust intensity/brightness independently
• Smooth, flicker-free Dimming
Tunable White 1.6-3.7
Design Series Tunable White 1.6-3.7W/Ft
Specifications
| Binning | 3-step MacAdams |
| Color Temperature | 2100K - 5400K |
| Environment | IP65, IP68 |
| Max Run Length | 16.0 FT |
| Mounting | 3M Adhesive, Channels, Clips |
| LED's/M | 128 |
| Ambient Temp | -15° to 140°F (-25° to 60°C), -15° to 176°F (-25° to 80°C) |
| Voltage | 24 |
| Wattage | 1.6 - 3.7 |
| Certifications | cULus Listed |
| CRI | 90 |
| Cut Length | 4.90" |
| Dimming | 0-10V, MLV, S3i |
| Lumens / Ft | 109, 272 |
| Warranty | 5 Years, 50,000 Hours |
| Wire Size | 20 AWG. 2-wire |
| Light Type | Dynamic White |
All Products come with:
- 24/7 Support
- Satisfaction Guarantee
- Premium Quality
- Worldwide Shipping
Documents
Select which sections you would like to be merged into one PDF.
Other Downloads
Design Series
The Design Series is an architectural-grade 24V LED strip lighting that ensures proper execution of design intentions in both a dry (IP20) or damp (IP67) application for accent or ambient lighting.
This series has a high performance 90+ CRI/ 3-step MacAdam/ UL Certified/ JA8-Title 24/ smooth, flicker-free dimming down to 0.1%.

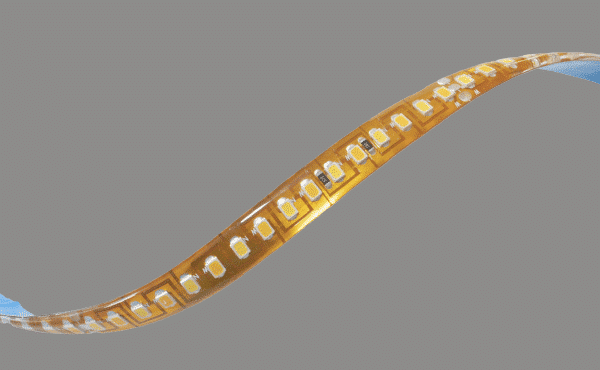

The LED tape has 3M adhesive backing for direct install or to install with clips or in one of our channels for a more finished look.
Available in a wide array of static white and tunable white options.
