Design Series Dim to Warm 4.57W/Ft
| Binning | 3-step MacAdams |
| Environment | IP20, IP65 |
| Color Temperature | 3000K - 1800K |
| LED's/M | 252 |
| Max Run Length | 16.4 FT |
| Mounting | Nova profiles, or no profile using tape backing |
| Ambient Temp | -4° to 113°F (-20° to 45°C) |
| Voltage | 24 |
| Wattage | 4.57 |
| Certifications | cULus Listed |
| Cut Length | 2.19" |
| Dimming | PWM |
| Lumens / Ft | 314, 330 |
| Warranty | 5 Years, 50,000 Hours |
| Wire Size | 18 AWG, 2-wire |
| CRI | 90 |
| Length | RL20MT, XX |
| Light Type | Dynamic White |

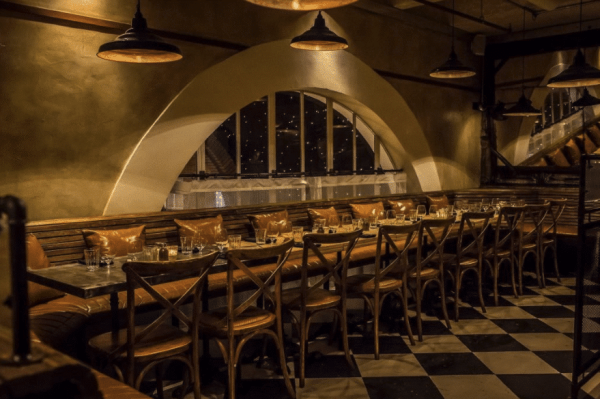

Dim to warm enables exceptionally smooth temperature transition, synchronized with dimming, to create a soft and cozy vibe
• Direct dimming with PWM output type driver, simple and convenient wiring
• CRI90+
• 5 year warranty
• IP20 stocked, IP65 available via special order
• Output range 314 to 330 Lm/ft @3000K
Select which sections you would like to be merged into one PDF.
This series has a high performance 90+ CRI/ 3-step MacAdam/ UL Certified/ JA8-Title 24/ smooth, flicker-free dimming down to 0.1%.

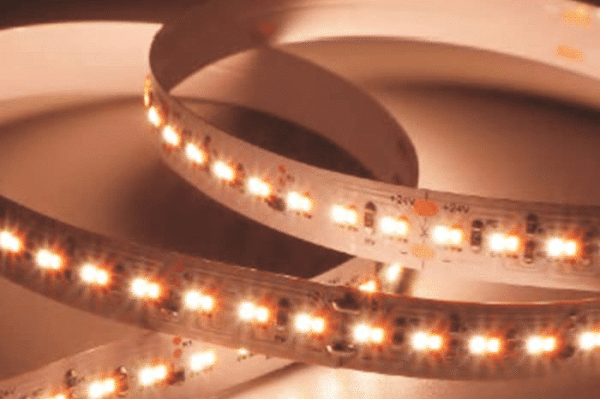

The LED tape has 3M adhesive backing for direct install or to install with clips or in one of our channels for a more finished look.
Available in a wide array of static white and tunable white options.
