Description

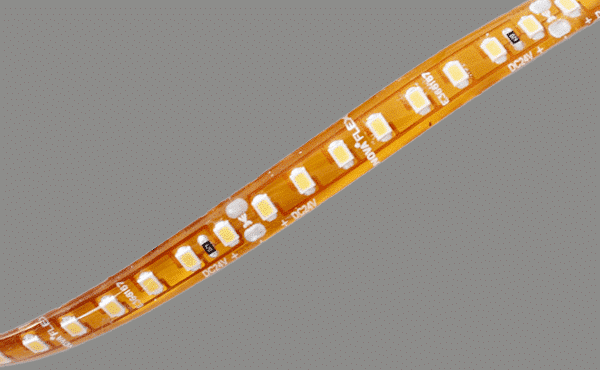

This architectural-grade, 90+ CRI LED strip light ensures proper execution of design intentions for a variety of applications.
• Dry / Wet Environment
• Smooth, Flicker-free Dimming
• PoE Compatible
Static White 4.4
Design Series Static White 4.4 W/Ft
Specifications
| Binning | 3-step MacAdams |
| Color Temperature | 2200K, 2500K, 2700K, 3000K, 3500K, 4100K |
| Environment | IP65, IP68 |
| LED's/M | 160 |
| Max Run Length | 18.0 FT |
| Mounting | 3M Adhesive, Channels, Clips |
| Ambient Temp | -15° to 140°F (-25° to 60°C), -15° to 176°F (-25° to 80°C) |
| Voltage | 24 |
| Wattage | 4.4 |
| Certifications | cULus Listed, JA8 Compliant, Title 24 |
| CRI | 90 |
| Cut Length | 1.97" |
| Dimming | 0-10V, MLV, S3i |
| Warranty | 5 Years, 50,000 Hours |
| Wire Size | 20 AWG. 2-wire |
| Lumens / Ft | 272, 326, 397, 407, 411, 424 |
| Length | RL10MT, RL50MT, XX |
| Light Type | Static White |
All Products come with:
- 24/7 Support
- Satisfaction Guarantee
- Premium Quality
- Worldwide Shipping
Documents
Select which sections you would like to be merged into one PDF.
Other Downloads
Design Series
The Design Series is an architectural-grade 24V LED strip lighting that ensures proper execution of design intentions in both a dry (IP20) or damp (IP67) application for accent or ambient lighting.
This series has a high performance 90+ CRI/ 3-step MacAdam/ UL Certified/ JA8-Title 24/ smooth, flicker-free dimming down to 0.1%.
The LED tape has 3M adhesive backing for direct install or to install with clips or in one of our channels for a more finished look.
Available in a wide array of static white and tunable white options.
