Description

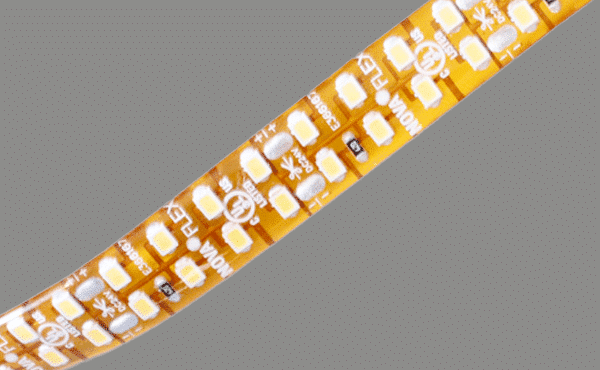

This architectural-grade, 90+ CRI LED strip light ensures proper execution of design intentions for a variety of applications.
• Dry / Wet Environment
• Smooth, Flicker-free Dimming
• PoE Compatible
Static White 6.6
Design Series Static White 6.6W/Ft
Specifications
| Binning | 3-step MacAdams |
| Color Temperature | 2200K, 2500K, 2700K, 3000K, 3500K, 4100K |
| Environment | IP65, IP68 |
| LED's/M | 240 |
| Max Run Length | 13.8 FT |
| Mounting | 3M Adhesive, Channels, Clips |
| Ambient Temp | -15° to 140°F (-25° to 60°C), -15° to 176°F (-25° to 80°C) |
| Voltage | 24 |
| Wattage | 6.6 |
| CRI | 90 |
| Cut Length | 1.31" |
| Dimming | 0-10V, MLV, S3i |
| Certifications | cULus Listed, JA8 Compliant, Title 24 |
| Warranty | 5 Years, 50,000 Hours |
| Wire Size | 20 AWG. 2-wire |
| Lumens / Ft | 444, 554, 558, 577, 581, 605 |
| Length | RL10MT, RL50MT, XX |
| Light Type | Static White |
All Products come with:
- 24/7 Support
- Satisfaction Guarantee
- Premium Quality
- Worldwide Shipping
Documents
Select which sections you would like to be merged into one PDF.
Other Downloads
Design Series

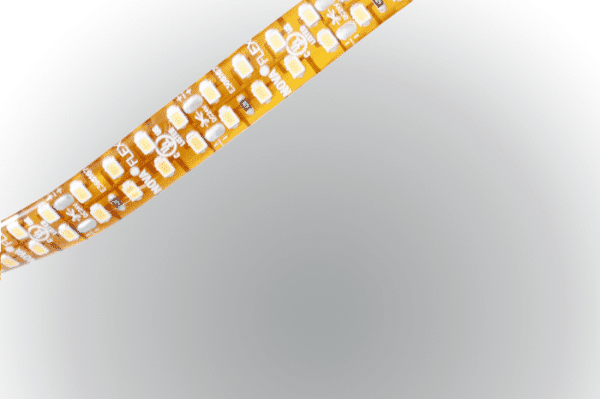

The Design Series is an architectural-grade 24V LED strip lighting that ensures proper execution of design intentions in both a dry (IP20) or damp (IP67) application for accent or ambient lighting.
This series has a high performance 90+ CRI/ 3-step MacAdam/ UL Certified/ JA8-Title 24/ smooth, flicker-free dimming down to 0.1%.
The LED tape has 3M adhesive backing for direct install or to install with clips or in one of our channels for a more finished look.
Available in a wide array of static white and tunable white options.
