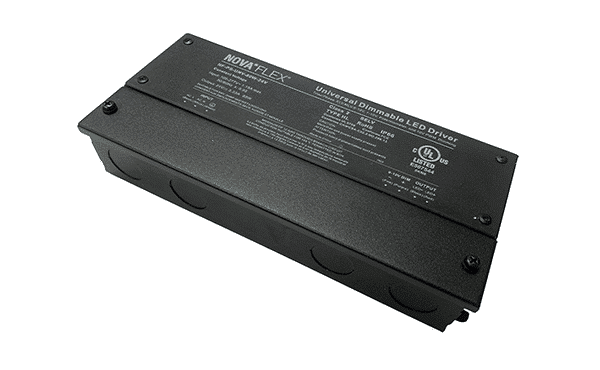

Universal Dim 80W

Universal Dim Power 80W

Specifications

Voltage Range120 - 277 VAC
Frequency Range47 - 63 Hz
Output Voltage24 VDC
Output Power80 W
Ambient Temp-40° to 140° F (-40° to 60° C)
Dimming0-10V, ELV, IEEE PAR1789, MLV, PFM, PWM
CertificationsClass 2, cULus Listed, FCC, Type HL, UL 8750
Light TypeStatic White, Static Color, Dynamic White, Dynamic Color
All Products come with:
  • 24/7 Support
  • Satisfaction Guarantee
  • Premium Quality
  • Worldwide Shipping
Share your love

Description

Universal Dim Power 80W

• Universal Dimming functions: 0-10V, 1-10V, potentiometer, 10V PWM, forward phase/leading edge/MLV and reverse phase/trailing edge/ELV TRIAC
• Can also be used in non-dimming configurations
• Works with static white, static color, adjustable, RGB, RGBW, and DRGB LED strip and neon
• Built-in active PFC (power factor correction)
• PWM output
• DMX system compatible
• 0-10V dimming wires are capped and labeled to ensure they’re only used when needed
