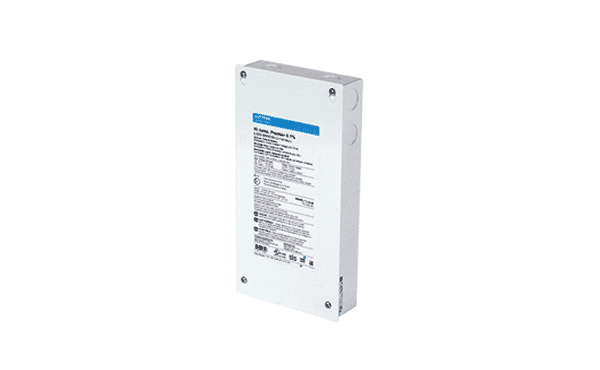

The Hi-lume Premier 0.1% Constant Voltage Driver
(L3D0) is a high-performance LED driver capable of
controlling up to 96 W of 24 V- constant voltage
loads. This driver provides smooth and continuous
dimming down to 0.1% low-end.



Continuous, flicker-free dimming from 100% to 0.1%

PWM Dimming

Meets IEEE1789 over the entire dimming range


Soft-on, Fade-to-Black operation for EcoSystem controls: fades smoothly between 0% and 0.1% when turned on and off for an incandescent like experience


50,000 hours

Operating Voltage

120 V ~ to 270 V ~ at 50/60Hz


• UL® Listed for United States and Canada (cULus®).
• NOM certified for Mexico.
–Thermal Class B
• FCC Part 15
– Class A (277 V~)
– Class B (120 V~)
• RoHS compliant

Guaranteed dimming performance when used with Lutron controls

HomeWorks QS, Energi Savr Node units with EcoSystem controls, GRAFIK Eye QS with EcoSystem controls, PowPak with EcoSystem dimming modules, PowPak with EcoSystem wireless fixture controls, and Quantum systems, allowing for integration into a planned or existing EcoSystem lighting control solution
