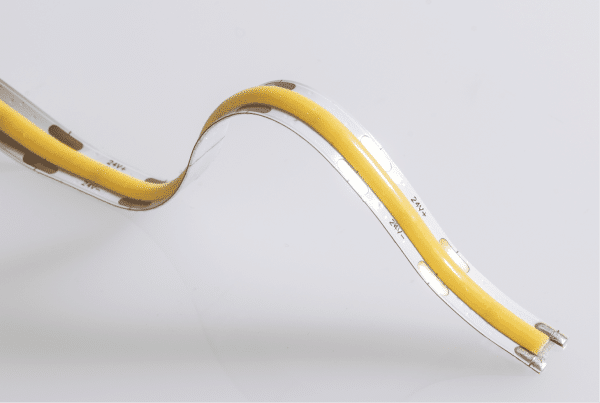

COB STC 3.0

  • Chip-on-board technology enables a linear, nearly dot-free light
  • Noticeably better than conventional LED strip
  • Great for under cabinet lighting and other low profile applications (even projects where aluminum profiles can’t be used)
  • Also enables a broader choice of dot-free aluminum profile/lens combo’s, including low profile
  • Available via special order in Blue, Red and Green, with 7-10 week lead-time
  • 5 year warranty

Specifications

Binning

3-step MacAdams

Color

Blue, Green, Red

Environment

IP20

LED's/M

480

Max Run Length

26 FT

Mounting

With or without aluminum profile

Operating Temp

-4° to 140°F (-20° to 60°C)

Voltage

24

Wattage

3.0

Certifications

CE, cULus Listed

Dimming

0-10V, MLV, S3i

Lumens / Ft

28, 65, 444

Warranty

50,000 Hours

Wire Size

20 AWG. 2-wire
