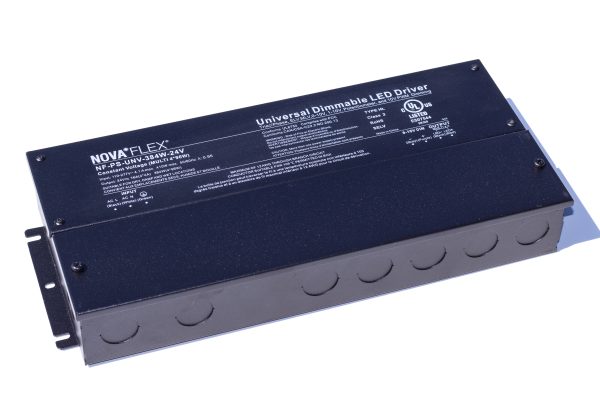

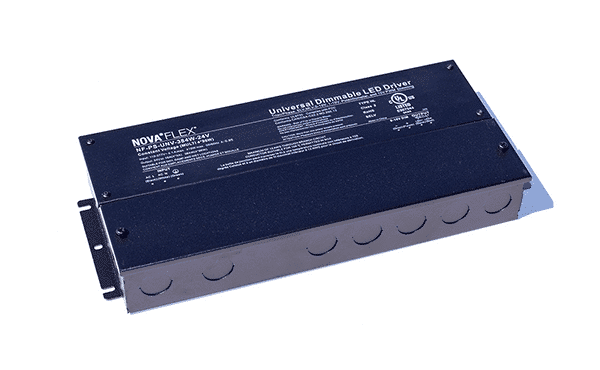

Universal Dim Power 384w
| Voltage Range | 120 - 277 VAC |
| Frequency Range | 47 - 63 Hz |
| Output Voltage | 24 VDC |
| Output Power | 384 W (4x96) |
| Dimming | 0-10V, ELV, IEEE PAR1789, MLV, PFM, PWM |
| Certifications | Class 2, cULus Listed, FCC, Type HL, UL 8750 |
| Light Type | Static White, Static Color, Dynamic White, Dynamic Color |
| Ambient Temp | -40° to 140° F (-40° to 60° C) |
Universal Dim Power 384W
•Universal Dimming functions: 0-10V, 1-10V, potentiometer, 10V PWM, forward phase/leading edge/MLV and reverse phase/trailing edge/ELV TRIAC
•Can also be used in non-dimming configurations
•Works with static white, static color, adjustable, RGB, RGBW, and DRGB LED strip and neon
•Built-in active PFC (power factor correction)
•PWM output
•DMX system compatible
• 0-10V dimming wires are capped and labeled to ensure they’re only used when needed
