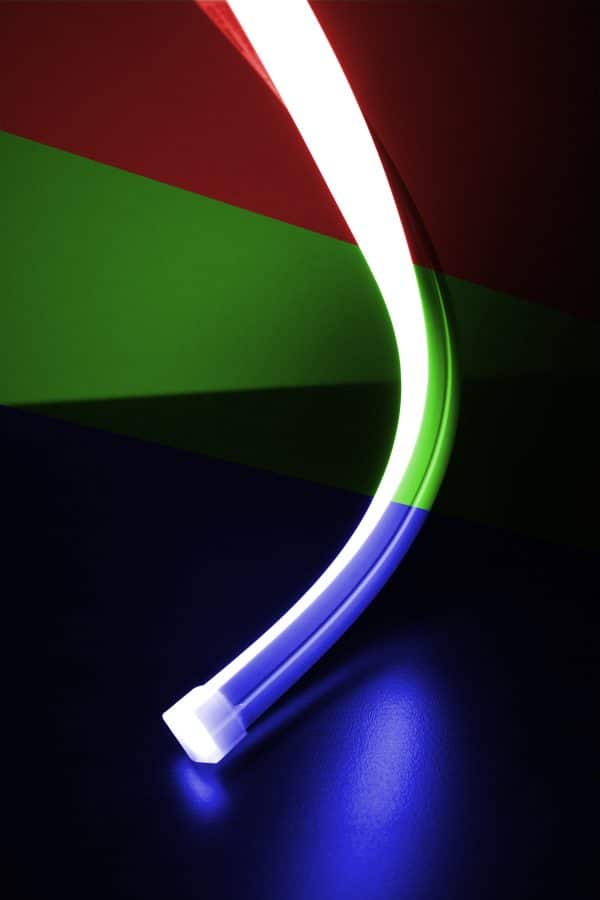

Dual Bend RGB 3.0W

Specifications

ColorBlue, Green, Red, RGB
Voltage24
Wattage3.0
EnvironmentIP67
CertificationscULus Listed
Warranty5 Years, 54,000 Hours
Ambient Temp-13˚ to 113˚F (-25˚C to 45˚C)
Cut Length1.97"
Bend DirectionDual Bend
Max Run Length16.4 FT
Wire Size20 AWG
DimmingIEEE PAR1789, PFM, PWM
Light TypeStatic Color, Dynamic Color
Other SeriesDual Bend Neon
MountingChannels, Clips
Beam Angle120˚
Lumens / Ft10, 16, 64, 88
All Products come with:
  • 24/7 Support
  • Satisfaction Guarantee
  • Premium Quality
  • Worldwide Shipping
Share your love

Description

This Series offers spec-grade, flexible, dual-bend 24V silicone neon that twists from side to top bend. With this product you have greater lighting design creativity with a professional, streamlined custom finish. With a 5-year warranty, cULus listed and RoHS compliant, this 90+ CRI, 2-step MacAdam LED neon comes in multiple static white and color outputs, RGB, and DRGB. A durable, outdoor/wet-rated product that is UV resistant with multiple lead options (back, left, right, or bottom). All Series have a max run of 16’4″ with 1.97″ cut length (except DRGB at 3.94″) and 7.86″ bend radius. Install of the Dual Bend Neon Series can be in the custom neon channel or with clips to create a unique design. Customized and shipped ready to install, the Dual Bend Neon also comes with Nova Flex’s best-in-class customer service.
