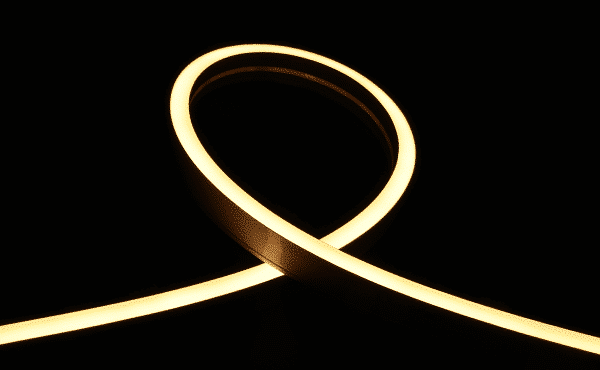

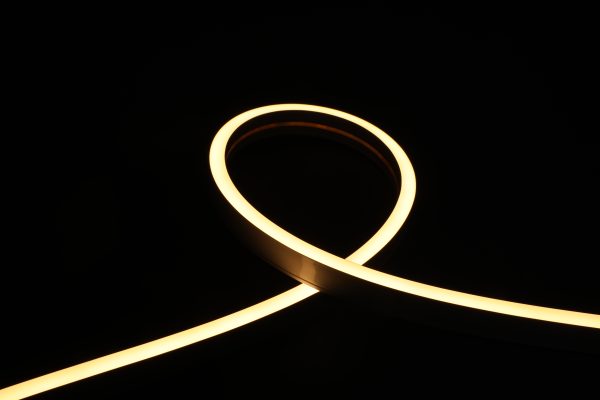

SBD SWH 4.2

• Dimmable architectural-grade (dot-free)
• Great for long runs up to 164 feet to outline buildings, coves or landscape applications
• Indoor / outdoor rated
• No external driver required
• ETL Listed with hardwire or plug option
• UV resistant
• Over-voltage/-current/-temp protection
• CRI 80+
• Professional, streamlined custom-finish with 7-10 week lead time

Specifications

Binning

3-step MacAdams
Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 6500K
Environment

Damp
Max Run Length

164 FT
Mounting

Channels, Clips
Operating Temp

-4° to 113°F (-20° to 45°C)
Voltage

120
Wattage

4.2
Beam Angle

120˚
Certifications

ETL Listed
CRI

80
Cut Length

3.94"
Dimming

ELV Triac, MLV
LED's/M

80
Lumens / Ft

264, 287, 291, 296, 298, 286
Warranty

50,000 Hours
Wire Size

18 AWG.
