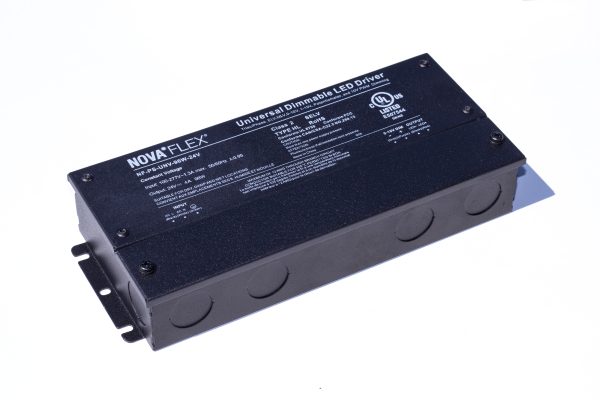

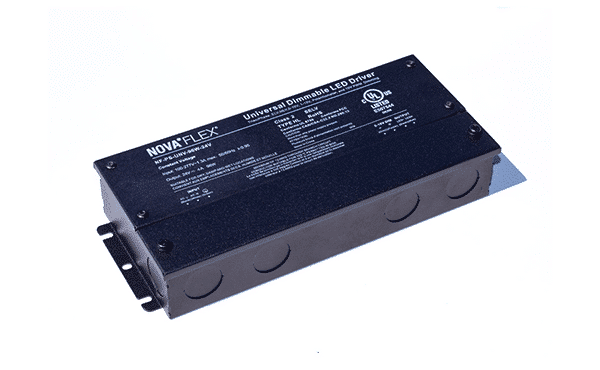

UNV DIM 96W

Universal Dim Power 96W

•Universal Dimming functions: 0-10V, 1-10V, potentiometer, 10V PWM, forward phase/leading edge/MLV and reverse phase/trailing edge/ELV TRIAC
•Can also be used in non-dimming configurations
•Works with static white, static color, adjustable, RGB, RGBW, and DRGB LED strip and neon
•Built-in active PFC (power factor correction)
•PWM output (pulse width modulation—doesn’t change color index)
•DMX system compatible
• 0-10V dimming wires are capped and labeled to ensure they’re only used when needed



Specifications

Voltage Range

120 – 277 VAC
Frequency Range

47 – 63 Hz
Output Voltage

24 VDC
Output Power

96 W
Operating Temp

-40° to 140° F (-40° to 60° C)
Dimming

0 – 100%, Flicker free
